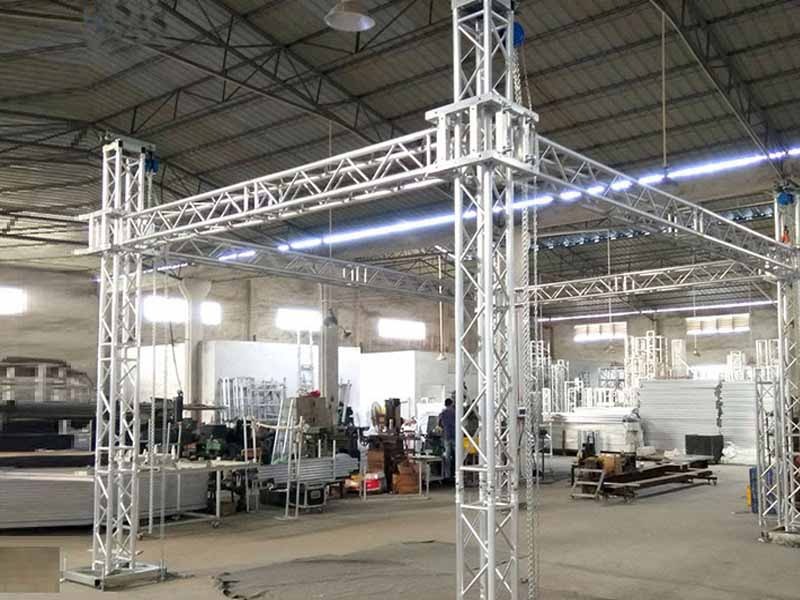

An excellent choice, as these tower lifts are the backbone of equipping theater and event lighting, especially when combined with the 290*290 mm square terrace I mentioned earlier.
Here’s how to make the most of these specifications when installing event lighting:
## Compatible with stage lighting
with a load capacity of 200 kg, this winch gives you great flexibility to suspend a variety of lighting equipment:
Moving Heads Spotlights: You can suspend approximately 6 to 8 spotlights (with an average weight of 20-25 kg per spotlight) on a bungee-supported bridge.
Par Cans and Wash lights: They are very lightweight, allowing for complete bridge coverage.
Effects devices: such as fog machines or laser lights.
## Features of the winch when used for “lighting terraces”
Gradual lifting: The manual winch allows you to lift the light slowly and steadily, protecting the lenses and sensors inside the spotlights from violent vibrations.
Height adjustment: Reaching a height of 5.5 meters is ideal for halls and open parks, as it ensures wide-angle light distribution without disturbing the audience or appearing in photo frames.
Independence: You do not need hanging points in the hall ceiling; you can build an integrated lighting system in any open (Outdoor) space.
## Essential accessories for connecting the terrace to the winch:
To safely install the “lighting terrace” above these winches, you will need the following parts:
T-Adapter / Truss Support: This is the metal piece that is mounted on top of the winch head and holds the truss from below.

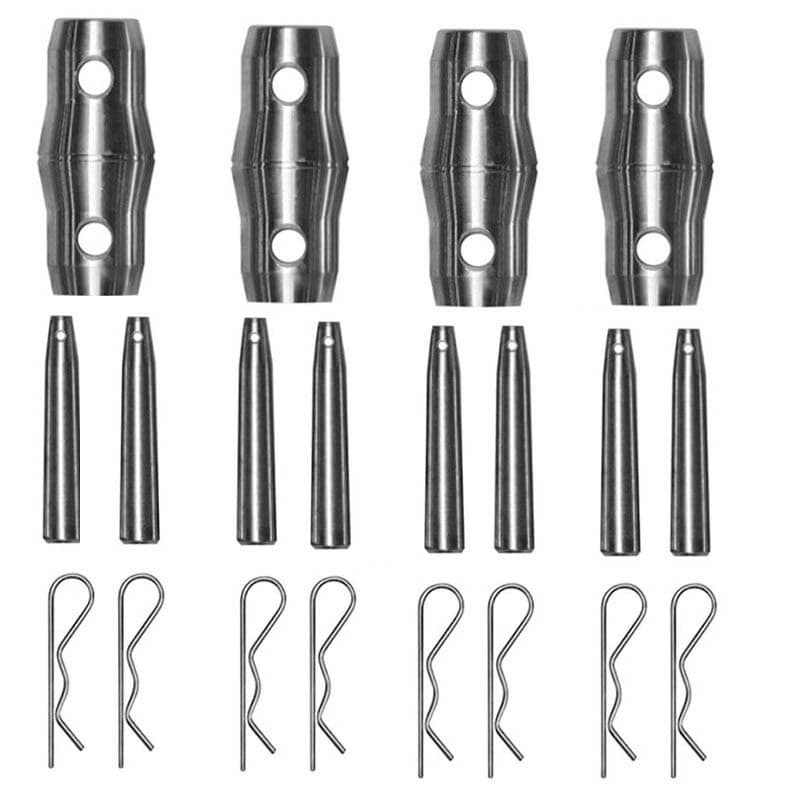

Safety Pins: Safety pins that hold the gears in place above the winch to prevent lateral slippage.
Global Clamps: Clips that connect light fixtures to terrace pipes (50 mm diameter).
## Technical advice for rigging
when lifting a long terrace bridge using two hand winches:
Two people must carry out the lifting operation at the same time and at the same speed to ensure that the terrace remains level (horizontal).
The tilt of the platform during lifting may lead to the weight being concentrated on one winch and exceeding the 200 kg load limit, which may cause the winch to bend or fall.
